End Carriages

Manufactured by means of high technology processes involving automatic welding and machining, our end carriages feature high quality and modularity of all components.

High capacity production allows cost effectiveness and superior delivery schedules.

Our end carriages utilise a live axel drive design and have been developed especially to meet the specific needs of the materials handling market. The drive units have been designed to suit the most severe of operative conditions. The smooth, quiet running of the drive is an excellent characteristic.

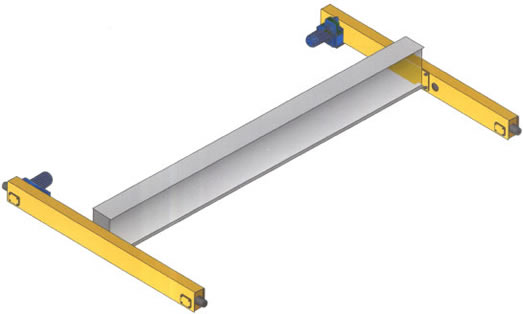

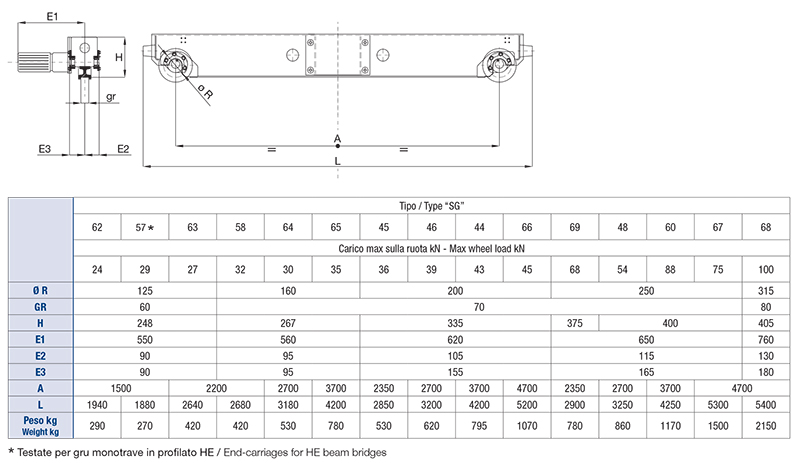

Single Girder End Carriage
Single Girder


Double Girder End Carriage
Double Girder

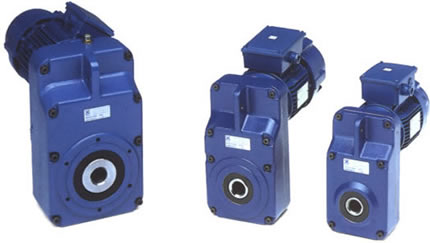

End Carriage Motors

Our Motors feature protection IP55 and insulation class F with the option of single or dual speed also frequency Inverter control.

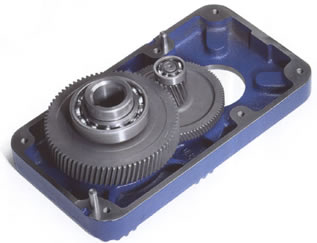

Casehardened helical spur type gears are fully enclosed and life time lubricated in cast iron gearbox casings


End Carriage Features : Structure is of box girder construction characterised by high resistance to bending and torisonal stresses. Self-aligning bushes are fitted into the bolted connections. Buffers are fabricated from polyurethane resin featuring high shock-absorbing resistance.
